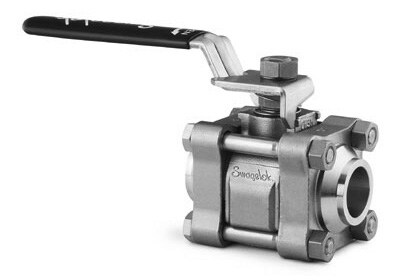

60 Series Ball Valves
Swagelok combined a number of distinctive features in developing the 60 series ball valve® to create a very robust and reliable valve that is suitable for a wide range of system conditions and applications. With a unique coned-disc, spring-loaded seat; live-loaded, two-piece chevron-designed stem packing; and three-piece, swing-out body design, Swagelok 60 series ball valves are designed for reliability and low maintenance. This quarter-turn ball valve is available in 2- and 3-way configurations as well as a variety of materials including stainless steel, carbon steel, brass and special alloys.
Performance and Design

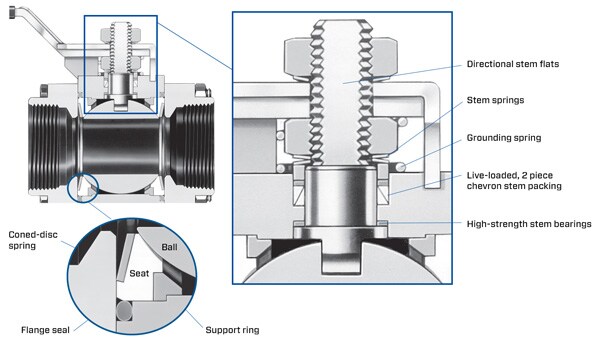

Several remarkable features of the 60 series ball valve create a distinct design difference unlike traditional ball valve designs. These unique design elements increase the life cycle of the components, ultimately lowering maintenance costs and unexpected downtime.
- Robust seat sealing is accomplished by combining reinforced PTFE with additional seat support and a coned-disc spring.
- A reliable stem seal is achieved by a two-piece chevron packing live-loaded with Belleville springs.
- Safe operation is ensured through employing a rounding spring and blow out proof stem.
- Our Limited Lifetime Warranty shows our commitment to quality.
Features
- Quarter-turn actuation
- Stainless steel, carbon steel, brass and special alloys
- Variety of end connections in 1/8 to 2 in. and 6 to 25 mm sizes
- Pneumatic and electric actuators
- Optional vent porting
- On-off (2-way) and switching (3-way) valves
- Flexing seat design ensures leak tight seal in both low- and high-pressure systems
Options and Accessories
Swagelok offers a variety of options and accessories to further customize your 60 series ball valve to your application requirements. Please see the 60 series catalog for specific details.- Valve Handle Options
- Vented Valves
- Low Dead Space Inserts
- Panel Mount Kits

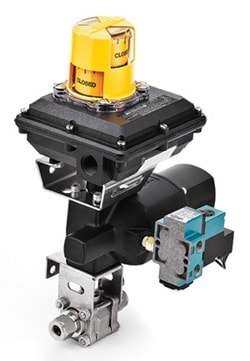

- Pneumatic Actuators
- ISO 5211 Compliant Pneumatic Actuators
SpecificationsAdditional details and information on how to select your specific application configuration can be found in the 60 series ball valve catalog.
|
Applications for UseThe 60 series ball valve is available in a general purpose series, as well as in configurations specific to specific applications.
|
More Information
For questions or more information on how to order the 60 series ball valve, please contact your authorized Swagelok representative or call (800) 252-7087. You can also email us.
